from Direction Electric Technology Co, Ltd.
Mobile Solar Container V1.0
Revolutionary Solar Power Systems: Solar Power, Wherever You Need It

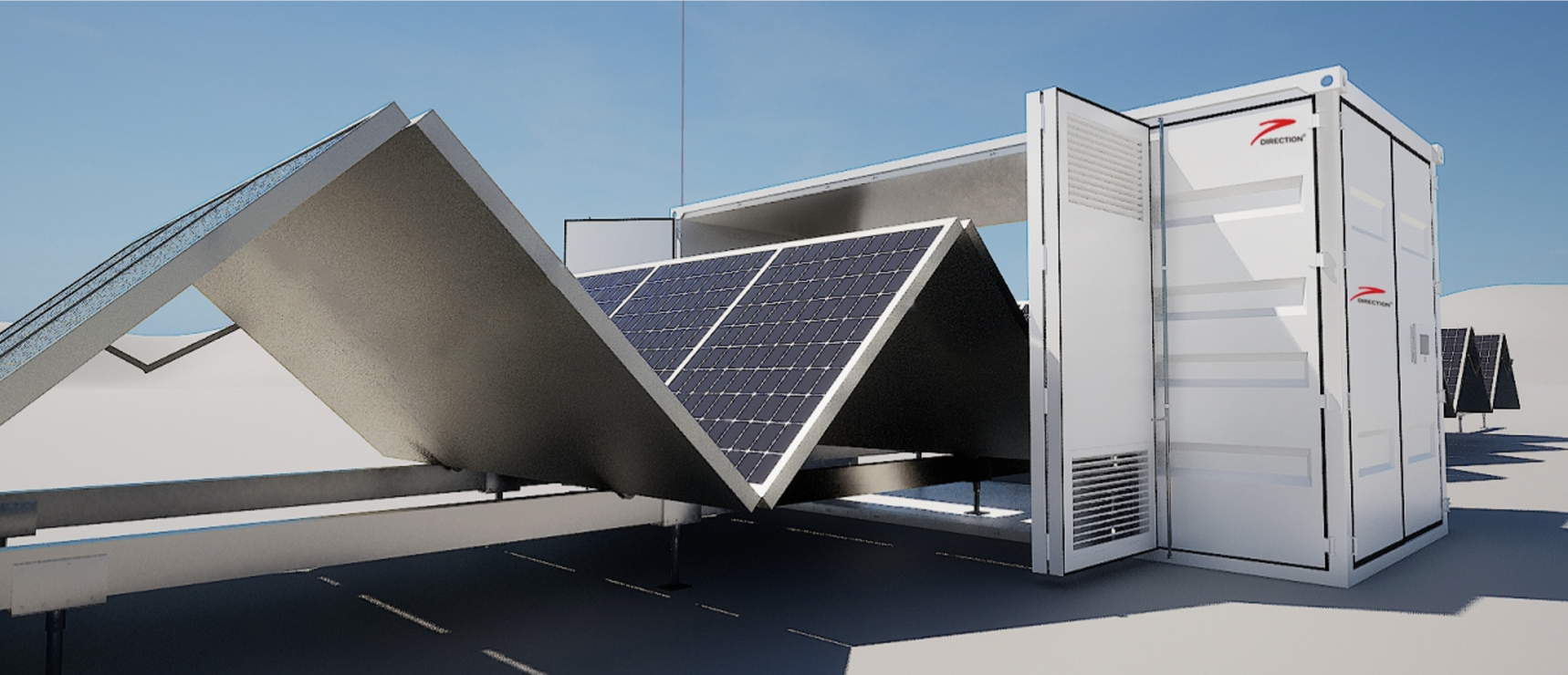

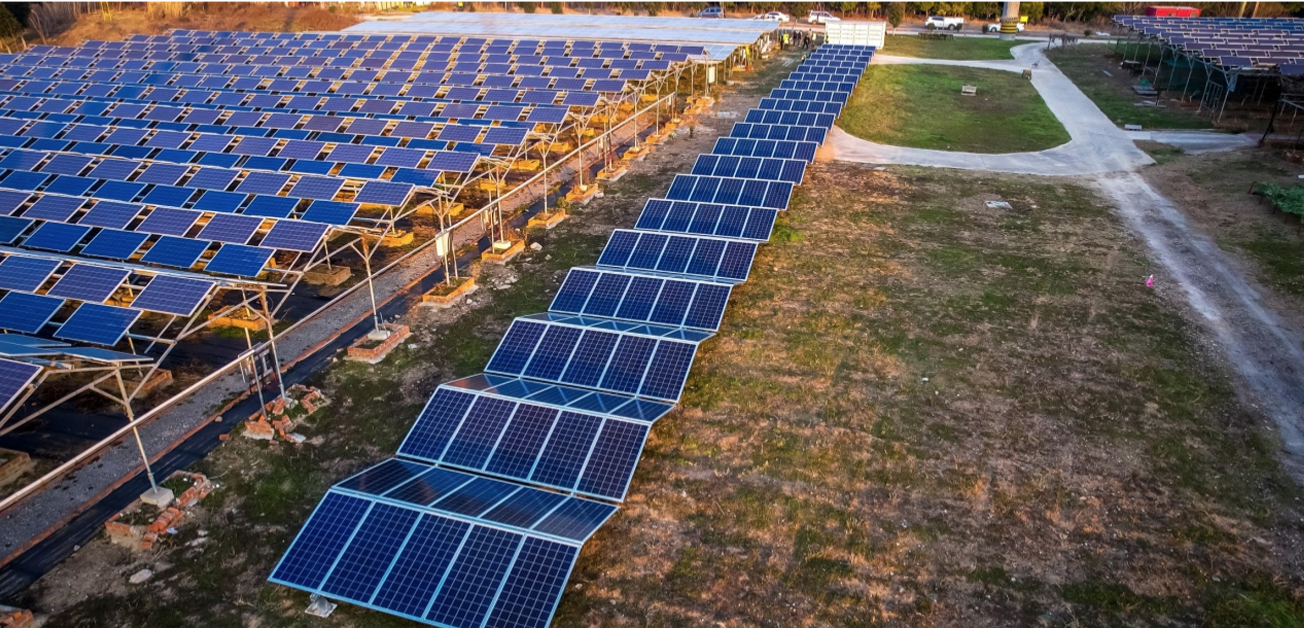

A containerized, movable off-grid solar power solution that unfolds into a high-capacity PV array in minutes.
Designed for fast deployment, reliable output, and easy transportation to remote sites, farms, construction areas, emergency zones, and temporary facilities
Key Benefits
Rapid on-site power without grid dependence

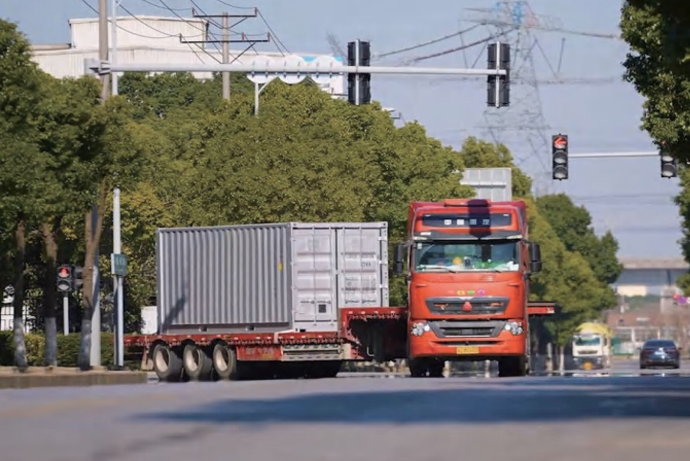

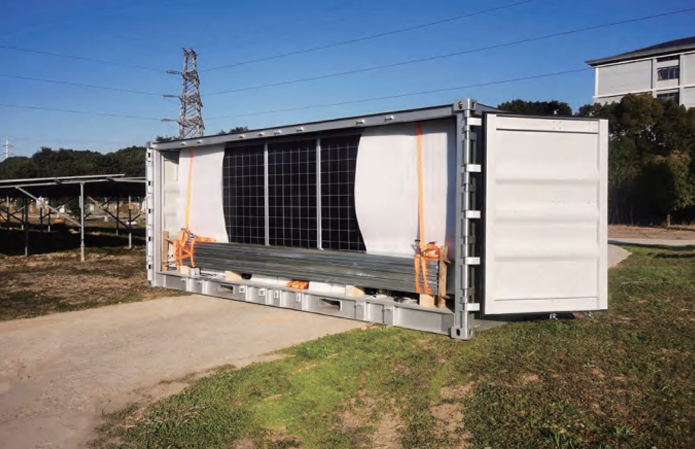

Transportable by standard truck and crane

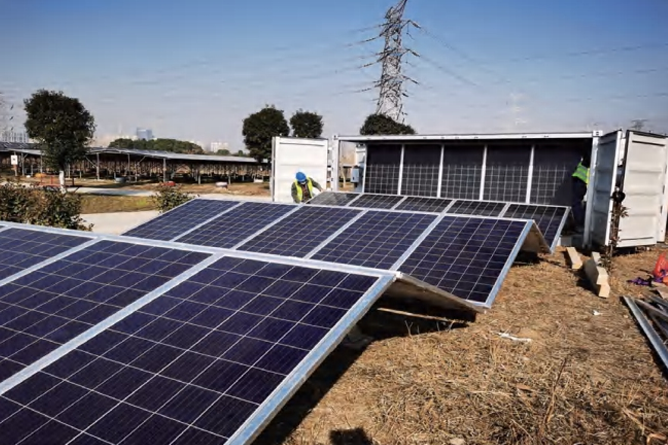

Unfolds to full PV array with minimal labour
Multiple sizes and power options to match your load
Models and Specifications
Choose from four container sizes with different PV capacities:
MC10HQ (10HQ container)
Total PV capacity: 16.7 kWp
Panels: 26 mono panels
Panel rating/dimensions: 645 W / 2384 × 1134 × 30 mm
Optional AC output: 12 kW / 40 kWh, extendable
Deployment time: ~9 minutes (excluding rail installation)
Occupied area (unfolded): 2.44 × 47 m
Personnel required: 3 people
MC40HQ-A (40HQ container, enhanced PV)
Total PV capacity: 170.0 kWp
Panels: 288 mono panels
Panel rating/dimensions: 590 W / 2278 × 1134 × 30 mm
Deployment time: ~11 minutes per side (4 sides)
Occupied area (unfolded): 12.1 × 100 m
Personnel required: 3 people

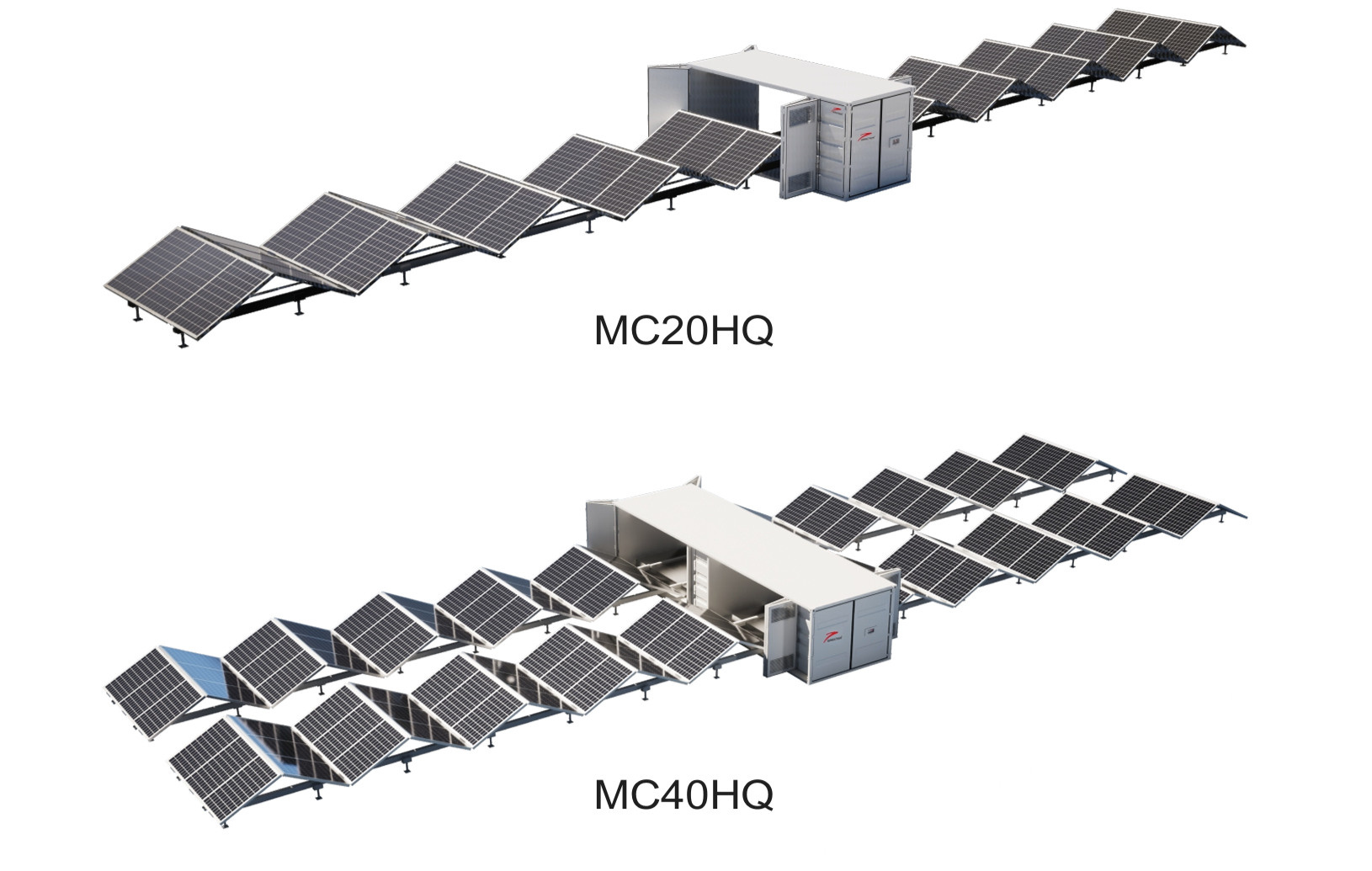

MC20HQ (20HQ container)
Total PV capacity: 63.7 kWp
Panels: 108 mono panels
Panel rating/dimensions: 590 W / 2278 × 1134 × 30 mm
Optional AC output: 30 kW / 156 kWh, expandable up to 260 kWh max
Deployment time: ~10 minutes per side (2 sides)
Occupied area (unfolded): 6.1 × 100 m
Personnel required: 3 people

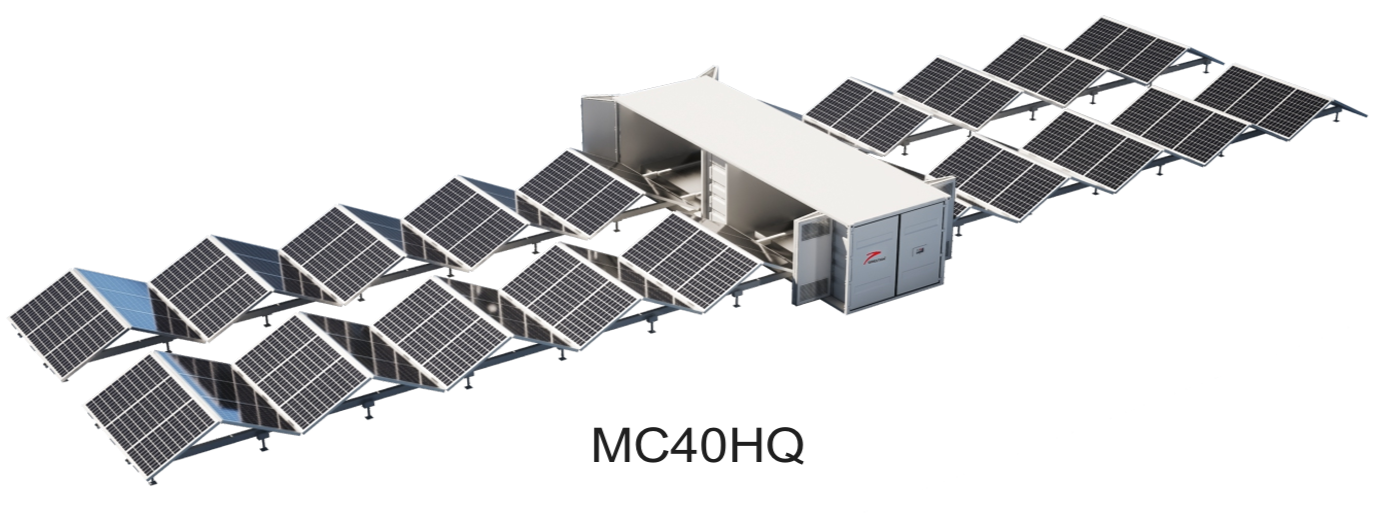

MC40HQ (40HQ container)
Total PV capacity: 127.4 kWp
Panels: 216 mono panels
Panel rating/dimensions: 590 W / 2278 × 1134 × 30 mm
Deployment time: ~10 minutes per side (4 sides)
Occupied area (unfolded): 12.1 × 100 m
Personnel required: 3 people
