AP EZ1 Microinverter

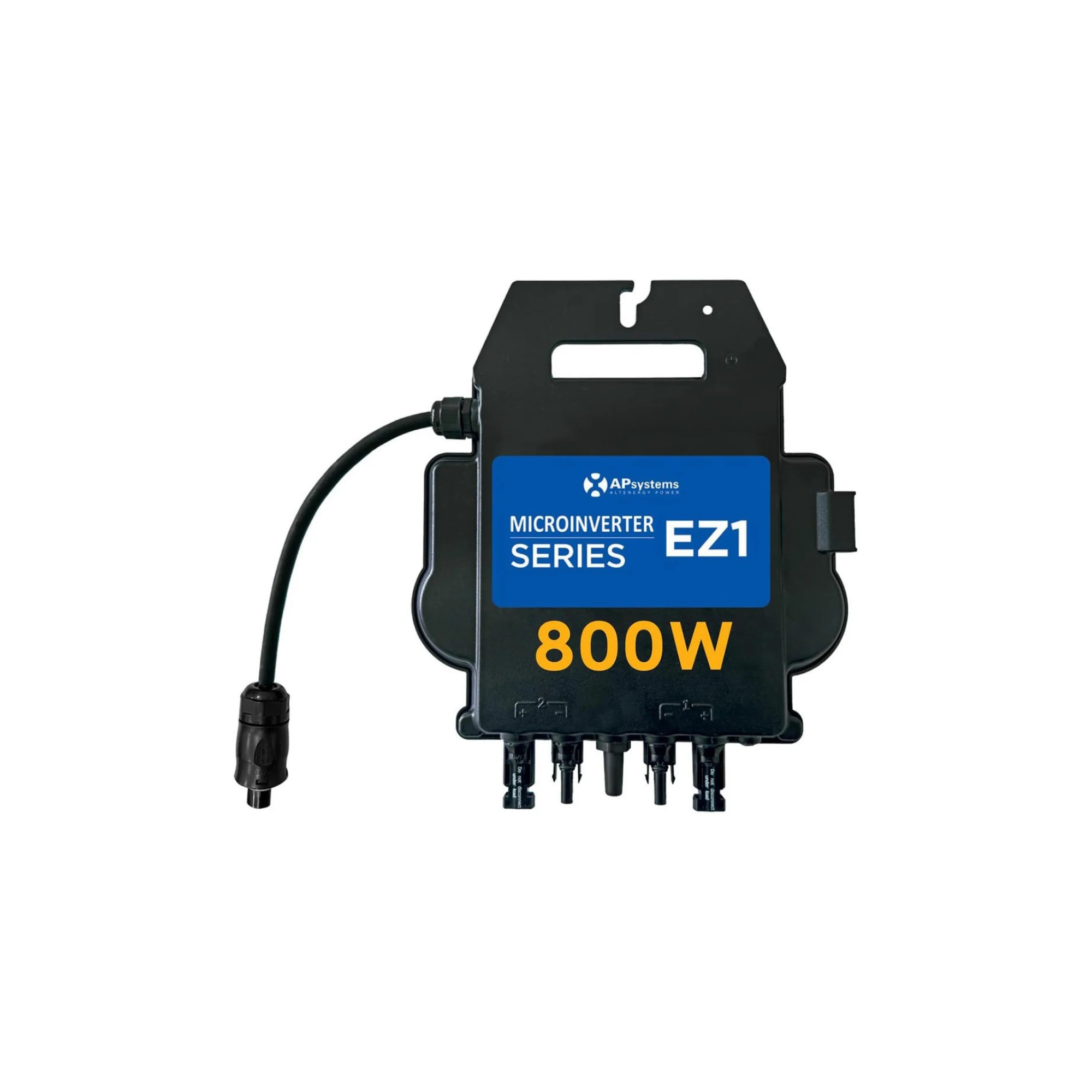

APsystems EZ1-M Microinverter – 800VA Single Phase

Important: This standalone microinverter must be hardwired and installed by a qualified, registered electrician.

The APsystems EZ1-M Microinverter is a compact, high-performance solution designed for small-scale solar installations, including garden-mounted and balcony solar systems.

Supporting up to two solar panels, the EZ1-M delivers a maximum AC output of 799VA (approximately 800VA) and features two independent Maximum Power Point Tracking (MPPT) channels to optimise energy generation from each connected panel.

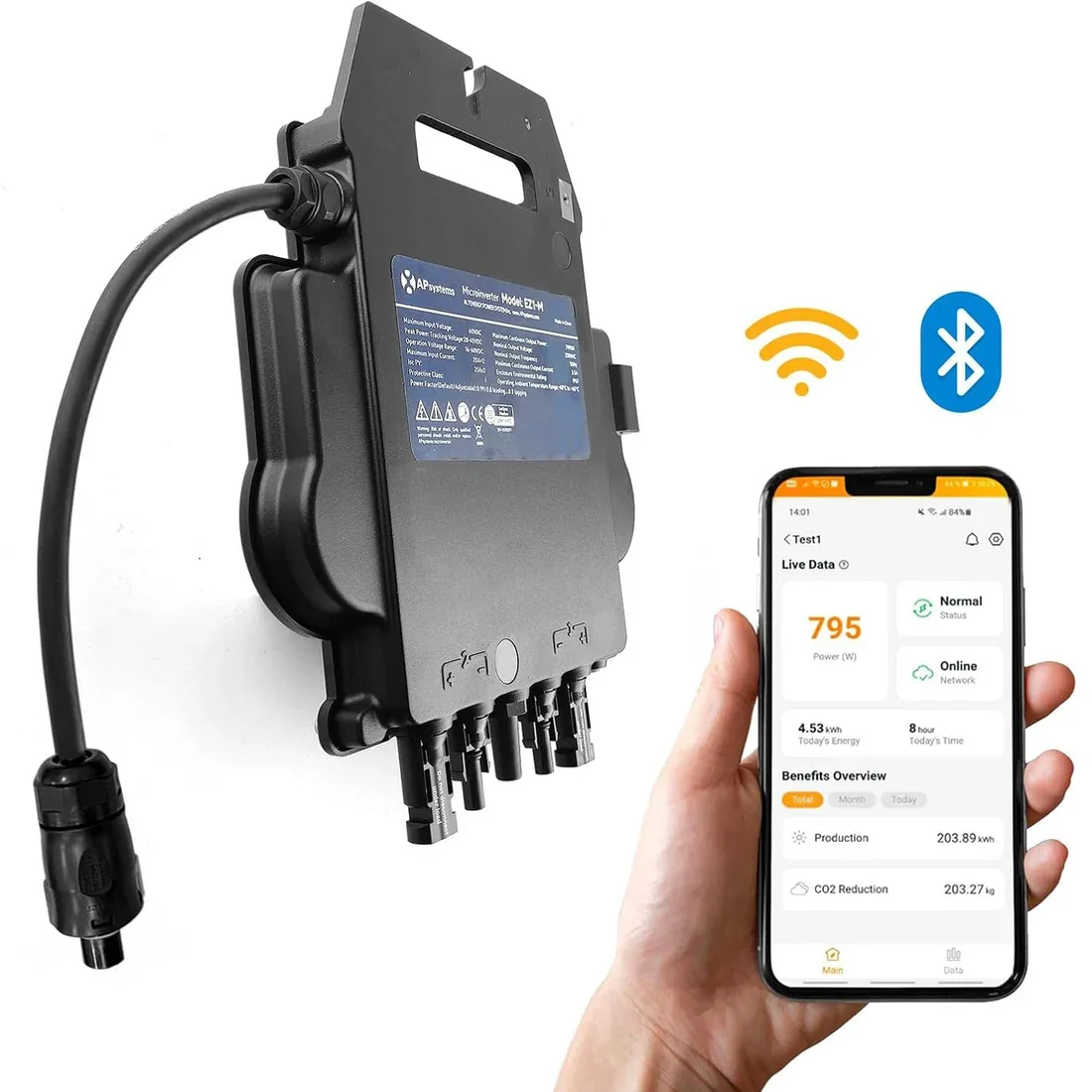

With built-in Wi-Fi and Bluetooth connectivity, users can easily monitor their solar generation in real time through the AP EasyPower app, providing convenient access to system performance from their smartphone.

Designed for reliability and ease of use, the EZ1-M combines efficient solar energy conversion, intelligent monitoring and a durable IP67-rated enclosure.

Key Features

• Up to 799VA AC output – Efficient power conversion for small-scale solar installations.

• Supports two solar panels – Compatible with suitable PV modules rated from 300W to 730Wp per input.

• Dual independent MPPT – Optimises the performance of each connected solar panel.

• Built-in Wi-Fi and Bluetooth – Convenient local and remote system monitoring.

• AP EasyPower app compatibility – View real-time solar generation and system performance.

• IP67-rated protection – Durable enclosure designed to withstand demanding outdoor conditions.

• Integrated safety protection relay – Designed to support safe and reliable operation.

• Compact design – Ideal for suitable balcony and ground-mounted solar installations.

Smart Solar Monitoring

The EZ1-M features integrated Wi-Fi and Bluetooth connectivity, allowing users to monitor their solar installation through the AP EasyPower app.

Connect directly to the microinverter using Bluetooth to view real-time generation data, or connect through Wi-Fi to access remote monitoring and system information.

The app also enables online system registration, which is required to qualify for the manufacturer's extended warranty.

Technical Specifications

• Manufacturer: APsystems

• Model: EZ1-M

• Type: Single-phase microinverter

• Maximum AC output: 799VA

• PV inputs: 2

• MPPT channels: 2 independent channels

• Recommended module power: 300–730Wp+ per input, subject to compatibility

• Maximum DC input voltage: 60V

• Maximum DC input current: 20A × 2

• Nominal AC voltage: 230V

• Connectivity: Wi-Fi and Bluetooth

• Protection rating: IP67

• Monitoring: AP EasyPower app

Installation Information

Professional electrical installation required.

This product is supplied as a standalone microinverter and must be hardwired to a suitable electrical circuit by a qualified, registered electrician.

Installation must comply with the manufacturer's instructions, applicable UK electrical regulations, including BS 7671, and relevant Distribution Network Operator (DNO) connection requirements.

For eligible installations covered by Engineering Recommendation G98, the DNO must normally be notified within 28 days of commissioning. Installations requiring prior approval must follow the appropriate application procedure.

Please note: This standalone microinverter is not supplied as a complete, certified UK plug-in solar kit and must not be connected directly to a standard household socket. The simplified plug-in connection rules apply only to systems meeting the relevant UK product and connection requirements.

Important Usage Restrictions

Not suitable for rooftop installation.

The APsystems EZ1 series is intended for suitable balcony and ground-mounted solar applications. The manufacturer states that rooftop installation is not permitted and will invalidate the product warranty.

Customers should ensure that their proposed installation is suitable before purchasing.

Manufacturer Warranty

The APsystems EZ1-M is eligible for a 12-year manufacturer's limited warranty, subject to the manufacturer's terms and conditions.

To qualify, the product must be registered through the AP EasyPower app or another application authorised by APsystems.

Warranty eligibility also depends on correct installation, intended use and the manufacturer's applicable sales and warranty conditions.

Please Note

• This listing is for the APsystems EZ1-M Microinverter only.

• Solar panels and the AC connection cable are not included.

• Installation must be completed by a suitably qualified electrician.

• The product must not be installed on a roof.

• Actual electricity generation depends on sunlight, panel positioning, shading, weather conditions and the connected solar panels.

• Incorrect installation may result in electric shock, fire or damage to electrical equipment.

If you are unsure whether this microinverter is suitable for your installation, please contact UKSOL before purchasing.
