UKSOL Smart Energy Hub 2

Intelligent energy control for smarter solar, batteries, and flexible tariffs

Lower bills. Smarter battery use.

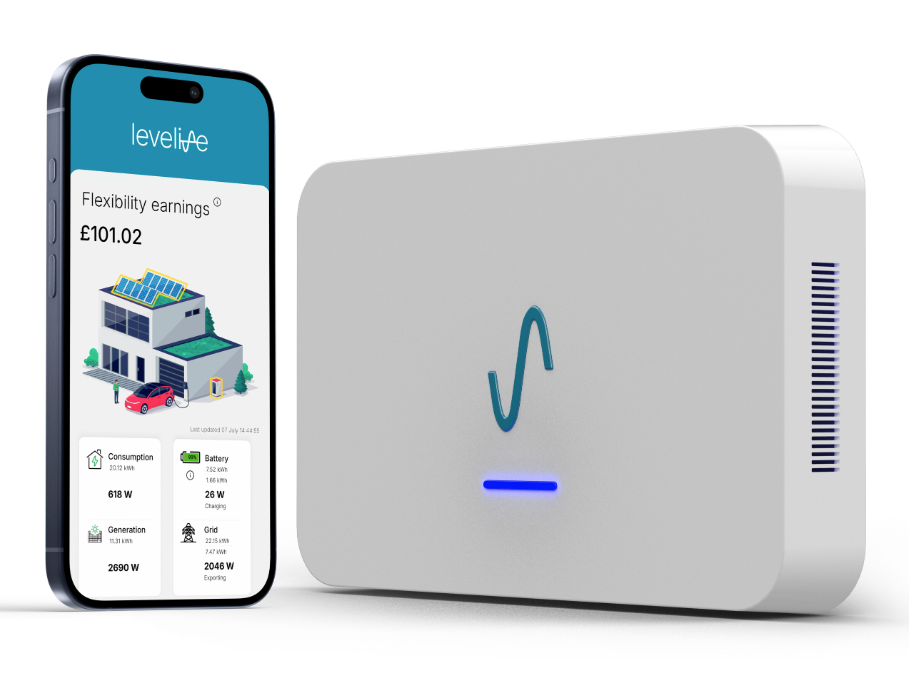

The Smart Energy Hub 2 is our next-generation energy management device, designed to help homeowners get more value from their solar and battery systems.

By intelligently monitoring and optimising energy flows, the Hub 2 enables lower bills, smarter battery use, and participation in flexibility and grid-support services — all without locking customers into a single energy supplier.

Why choose the Smart Energy Hub 2?

✔ Maximise solar self-consumption
✔ Reduce energy bills through intelligent optimisation
✔ Unlock payments from flexibility services
✔ Compatible with leading battery and inverter brands
✔ Fast installation and app-based setup

Whether paired with a new UKSOL installation or added to an existing system, Hub 2 is the brains that makes your energy system work harder for you.

Optimise charging and discharging cycles

Respond to time-of-use and dynamic tariffs

Enable participation in grid flexibility programmes

Provide real-time insights through a mobile app

UKSOL Device Spec Sheet

Smart Energy Hub 2 — Technical Specifications

Built for modern solar + battery systems with secure connectivity, fast commissioning, and precision monitoring.

Wi-Fi + Bluetooth TPM 2.0 + OTA Modbus-RTU

General AC

  • Supply Voltage230 V AC ±10% (50 Hz)
  • Maximum Load0.2 A
  • Ingress ProtectionIP20 (Indoor)

Connectivity I/O

  • Ethernet2 × RJ45
  • RS485 Ports2 × RJ11
  • WirelessWi-Fi 4 / Bluetooth 4.2
  • USB1 × USB-A

Protocol Comms

  • CommunicationsRS485 (Modbus-RTU)
  • Sampling RateUp to 20 Hz

Measurement Accuracy

  • Frequency±0.001 Hz
  • Active Power< 1% FS
  • Active EnergyClass 1 / Class B

Physical Form

  • Dimensions296 × 191 × 49 mm
  • Weight~905 g
  • MountingQuick-fit wall mount

Environment Ops

  • Operating Temperature-5°C to 60°C
  • HumidityUp to 95% RH
  • Altitude< 2000 m

Security & Compliance Trust

  • SecurityTPM 2.0, OTA Updates
  • StandardsPSTI / EN 18031
  • CertificationCE, RoHS, MID*

* MID certification supported via separate energy meter where required.

Want to upgrade your solar and battery system with smarter control?

Complete the form below and a UKSOL specialist will confirm compatibility, pricing, and installation options for the Smart Energy Hub 2.
